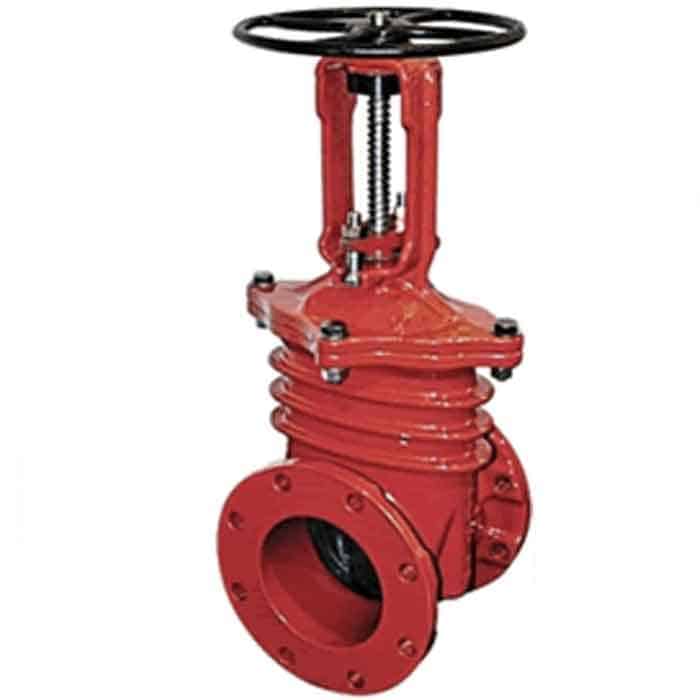

R-2365 – Ductile Iron Mueller® Gate Valve

R-2365 – Ductile Iron Mueller® Gate Valve

Mueller® resilient seated outside screw and yoke wedge gate valves have features to make them easier to operate and to preserve the sealing capability and interior coating integrity for many years of reliable service. Manually operated, supplied with a handwheel.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , , ,

Description

Type
Wedge • Resilient Seated • Outside Screw & Yoke
Size & Connections
DN65 to DN300 • ANSI 125 Flange (PN10/16 on request)
Duty
Water
Materials
Iron Body, Bonnet & Yoke • Stainless Steel Stem • Rubber Encapsulated Iron Disc
Pressure Rating
17 Bar
Temperature
0 to 50°C
Compliance & Approvals
UL listed • FM approved • AWWA/ANSI C550 • ANSI/NSF 61

Additional information

Variant

DN 65, DN 80, DN 100, DN 150, DN 200, DN 250, DN 300, Other – Please specify in message
