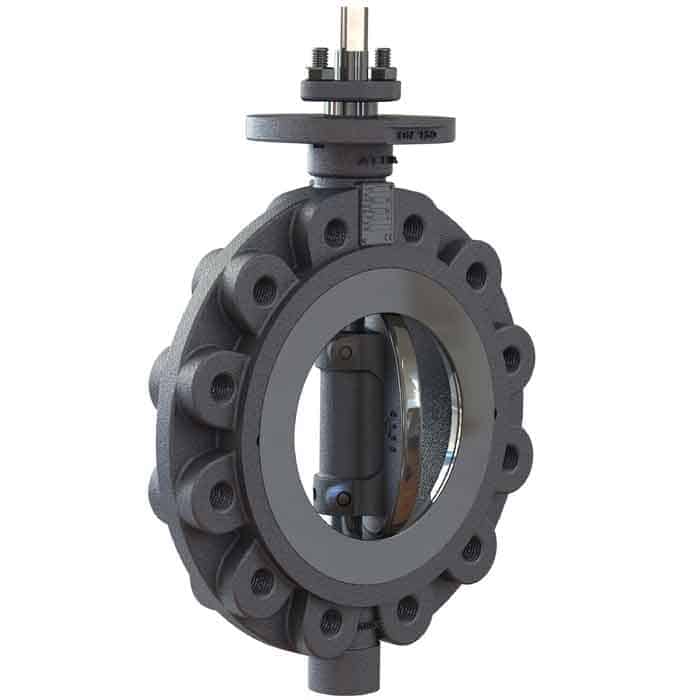

JV97 – Carbon Steel Lugged & Tapped High-Performance Butterfly Valve, PTFE Lined

JV97 – Carbon Steel Lugged & Tapped High-Performance Butterfly Valve, PTFE Lined

High-performance butterfly valve designed and tested to meet or exceed most general industry standards, please specify if lever, gearbox or actuator is required.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , , , ,

Description

Type
Lugged & Tapped • High-Performance • Double offset
Size & Connections
DN50 to DN400 • Wafer – Between BS4504 PN10/16, ANSI150/300 & JIS 5/10K Flanges*
Duty
Air • Inert Gas • Oil • Process • Seawater • Steam • Water
Materials
Carbon Steel Body • Stainless Steel Disc • PTFE Liner
Pressure Rating
PN16
Temperature
-10°C to 230°C
Compliance & Approvals
Lloyds & ABS Type Approval • EN558-1 Series 20
* Specify when enquiring

ISO5211 Pad Mount

Additional information

Variant

DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, DN 350, DN 400, Other – Please specify in message
