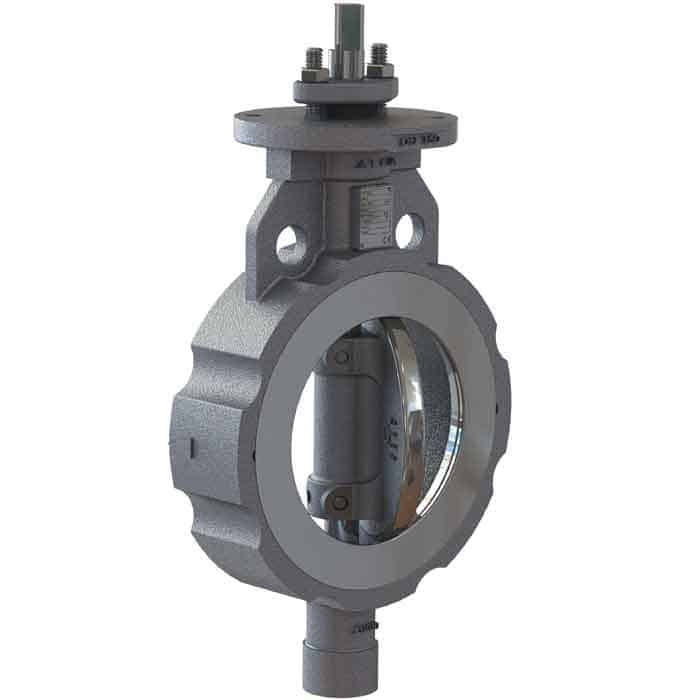

JV96 – Carbon Steel Wafer High-Performance Butterfly Valve, PTFE Lined

JV96 – Carbon Steel Wafer High-Performance Butterfly Valve, PTFE Lined

High-performance butterfly valve designed and tested to meet or exceed most general industry standards, please specify if lever, gearbox or actuator is required.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , , , ,

Description

Type
Multi-Flange Wafer • High-Performance • Double offset
Size & Connections
DN50 to DN400 • Wafer – Between BS4504 PN10/16, ANSI150/300 & JIS 5/10K Flanges*
Duty
Air • Inert Gas • Oil • Process • Seawater • Steam • Water
Materials
Carbon Steel Body • Stainless Steel Disc • PTFE Liner
Pressure Rating
PN16
Temperature
-10°C to 230°C
Compliance & Approvals
Lloyds & ABS Type Approval • EN558-1 Series 20
* Specify when enquiring

ISO5211 Pad Mount

Additional information

Variant

DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, DN350, DN400, Other – Please specify in message
