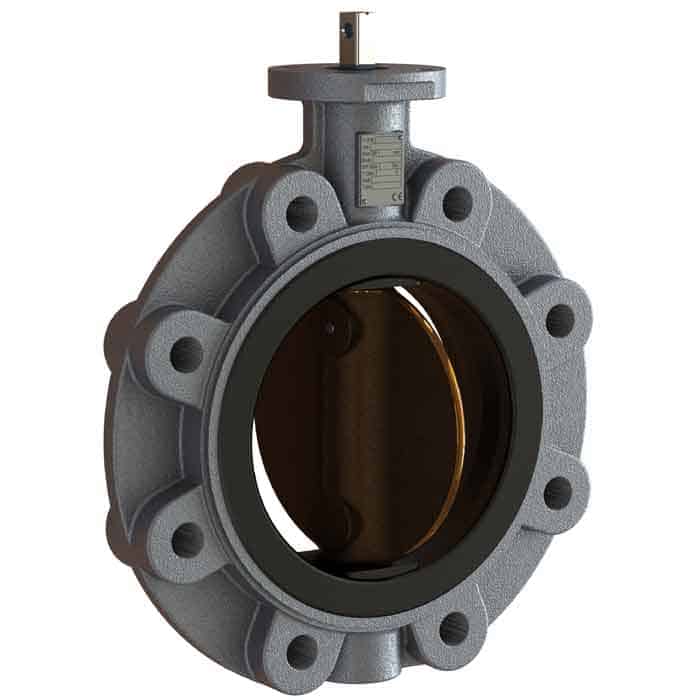

JV64N – Marine Ductile Iron Lugged & Tapped Butterfly Valve, NBR Lined

JV64N – Marine Ductile Iron Lugged & Tapped Butterfly Valve, NBR Lined

Marine quality butterfly valve with a bonded NBR liner suitable for many duties including oils and hydrocarbons.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , , ,

Description

Type
Lugged & Tapped
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Ductile Iron Body • Stainless Steel or Ali-Bronze Disc* • NBR Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
0°C to 80°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring

ISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

Additional information

Variant

DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, DN 350, DN 400, DN 450, DN 500, DN 600, DN 700, DN 800, DN 900, DN 1000, DN 1100, DN 1200, Other – Please specify in message
