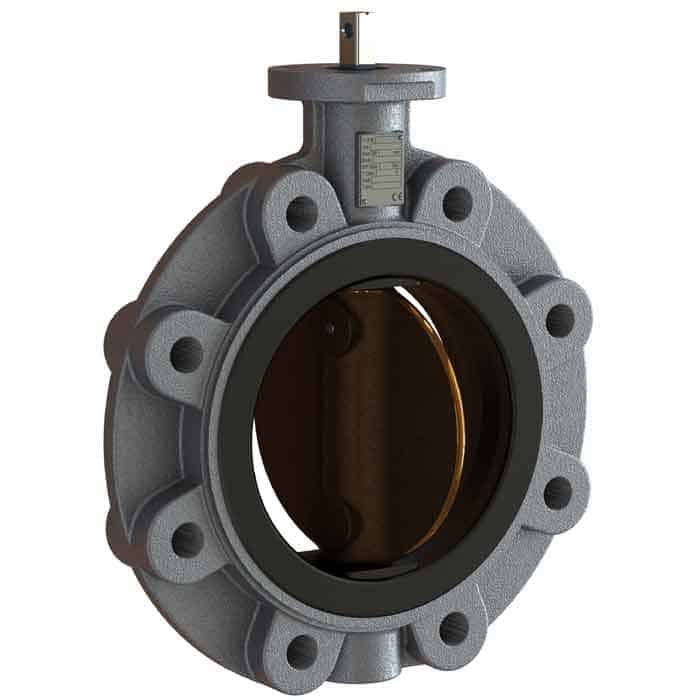

JV64E – Marine Ductile Iron Lugged & Tapped Butterfly Valve, EPDM Lined

Marine quality butterfly valve with a bonded EPDM liner suitable for many duties including water.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Product Options
Clear

Description

Type
Lugged & Tapped
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Seawater • Water
Materials
Ductile Iron Body • Ali-Bronze or Stainless Steel Disc* • EPDM Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-30°C to 110°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring

ISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

Additional information

Variant

DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, DN 350, DN 400, DN 450, DN 500, DN 600, DN 700, DN 800, DN 900, DN 1000, DN 1100, DN 1200, Other – Please specify in message
