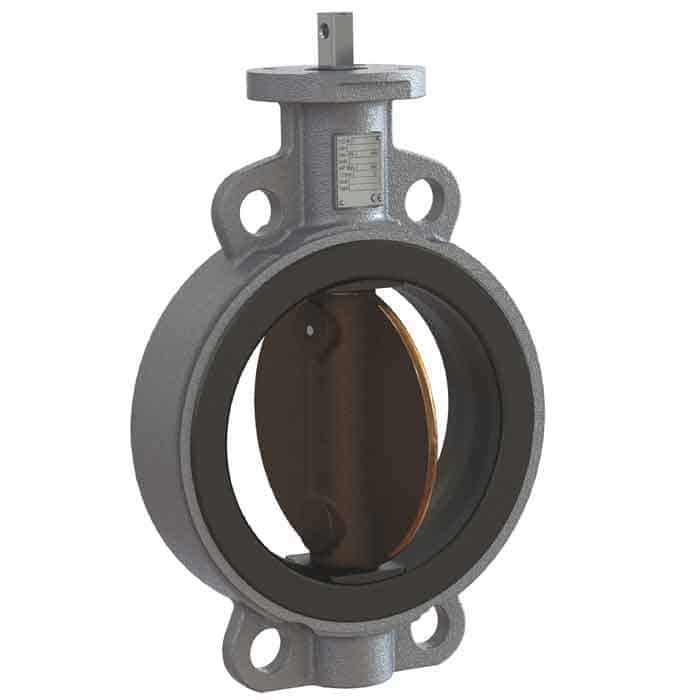

JV57E – Marine Ductile Iron Wafer Butterfly Valve, EPDM Lined

JV57E – Marine Ductile Iron Wafer Butterfly Valve, EPDM Lined

Marine quality butterfly valve with a bonded EPDM liner suitable for many duties including water.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , , ,

Description

Type
Multi-Flange Wafer
Size & Connections
DN40 to DN1200 • Wafer – Between BS4504 PN6/10/16/25, ANSI150 & JIS 5K Flanges*
Duty
Seawater • Water
Materials
Ductile Iron Body • Ali-Bronze or Stainless Steel Disc* • EPDM Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-30°C to 110°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 20
* Specify when enquiring

ISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

Additional information

Variant

DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, DN 350, DN 400, DN 450, DN 500, DN 550, DN 600, DN 700, DN 800, DN 900, DN 1000, DN 1100, DN 1200, Other – Please specify in message
