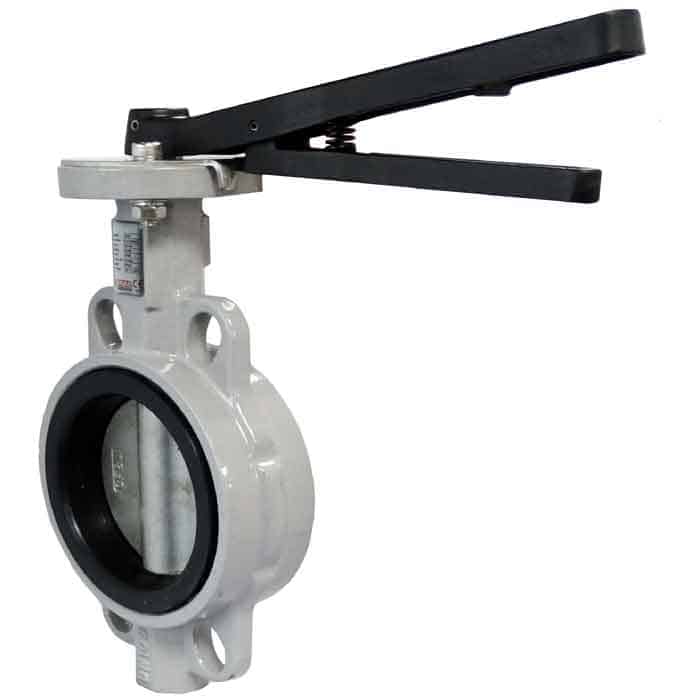

JV52E – Ductile Iron Wafer Butterfly Valve, EPDM Lined

JV52E – Ductile Iron Wafer Butterfly Valve, EPDM Lined

High-quality butterfly valve with an EPDM liner, offering a long life with low maintenance. Manually operated, supplied with a lockable lever or gearbox.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , ,

Description

Type
Multi-Flange Wafer
Size & Connections
DN40 to DN300 • Wafer – Between BS4504 PN6/10/16, ANSI150 & JIS 5/10/16 Flanges
Duty
Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • EPDM Liner
Pressure Rating
PN16
Temperature
-10°C to 120°C
Compliance & Approvals
Length to EN558-1 Series 20 • ISO 5211 Top Mounting

ISO5211 Pad Mount

Additional information

Variant

DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, Other – Please specify in message
