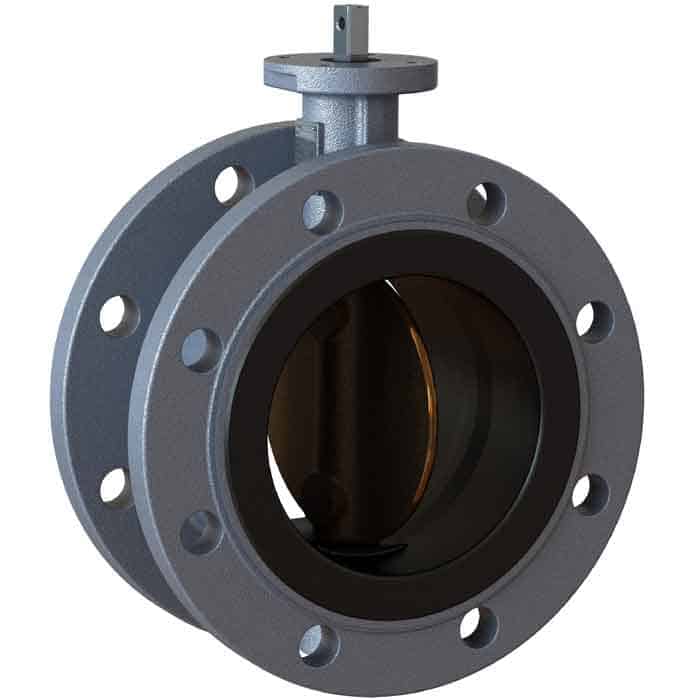

JV46E – Marine Ductile Iron Double Flange Butterfly Valve, EPDM Lined – EN558-1 Series 13 Length

JV46E – Marine Ductile Iron Double Flange Butterfly Valve, EPDM Lined – EN558-1 Series 13 Length

Marine quality butterfly valve with a bonded EPDM liner suitable for many duties including water.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , , ,

Description

Type
Double Flanged
Size & Connections
DN40 to DN1200 • BS4504 PN6/10/16, ANSI150 & JIS 5/10K*
Duty
Seawater • Water
Materials
Ductile Iron Body • Ali-Bronze or Stainless Steel Disc* • EPDM Liner
Pressure Rating
50-200mm PN16 • 250-1200mm PN10
Temperature
-30°C to 110°C
Compliance & Approvals
Lloyds, DNV, ABS, BV Type Approval • 3.1 & 3.2 Cert (on request) • EN558-1 Series 13
* Specify when enquiring

ISO5211 Pad Mount3.1 & 3.1 Material Certification (on request)

Additional information

Variant

DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, DN 350, DN 400, DN 450, DN 500, DN 600, DN 700, DN 800, DN 900, DN 1000, DN 1100, DN 1200, Other – Please specify in message
