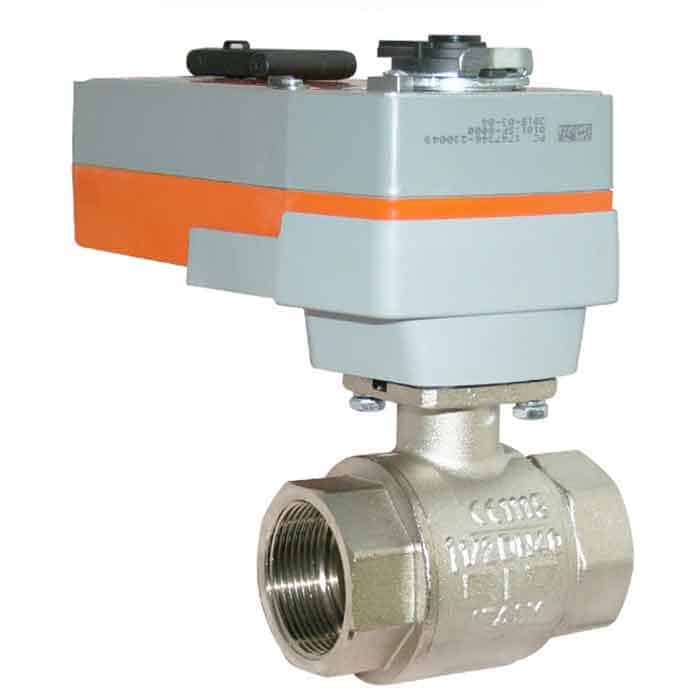

JV241006 – Electrically Actuated (Spring Return) Brass Nickel Plated WRAS Approved Ball Valve

JV241006 – Electrically Actuated (Spring Return) Brass Nickel Plated WRAS Approved Ball Valve

A WRAS approved (V4500 range) nickel plated, brass-bodied ball valve suitable for potable water. Supplied completely assembled with a SRFA-R Electric Actuator.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , , , , ,

Description

Type
Two-Piece • Full Bore • ISO 5211 Mount • Electrically Operated (Spring Return)
Size & Connections
6mm (1/4″) to 50mm (2″) BSPP Female
Duty
Air • Gas • Oil • Water
Materials
Nickel Plated Brass Body • PTFE Seat • Chrome Plated Brass Ball
Pressure Rating
PN40
Temperature
-20°C to 95°C (Dependent on pressure)
Compliance & Approvals
WRAS • Actuator Functionality Certificate

WRAS Approved ProductElectrically Actuated

Additional information

Variant

½", ¾", 1", 1¼", 1½", 2", Other – Please specify in message
