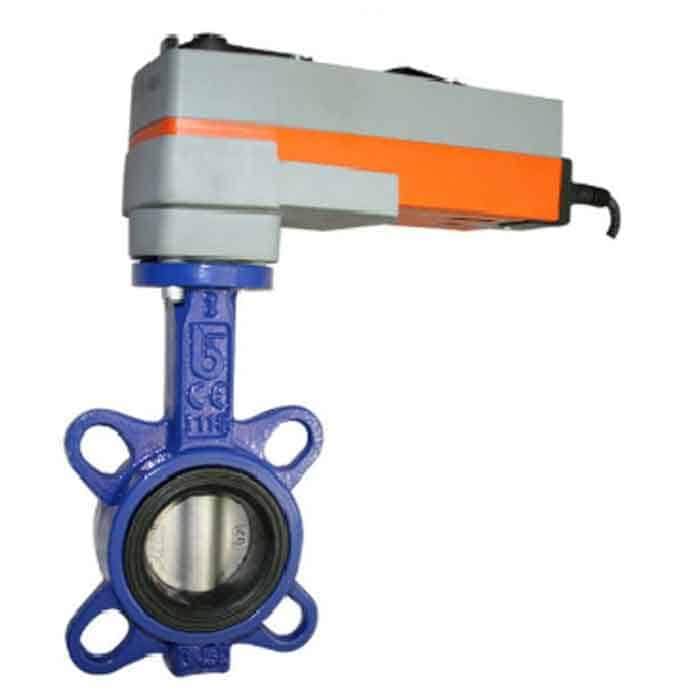

JV241004 – Electrically Actuated (Spring Return) Wafer Butterfly Valve, EPDM Lined – WRAS Approved

JV241004 – Electrically Actuated (Spring Return) Wafer Butterfly Valve, EPDM Lined – WRAS Approved

WRAS approved general purpose butterfly valve with an EPDM liner, offering a long life with low maintenance. Supplied completely assembled with an SRFA-R Electric Actuator.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , ,

Description

Type
Multi-Flange Wafer • ISO 5211 Mount • Electrically Operated (Spring Return)
Size & Connections
DN25 to DN50 • Wafer – Between BS4504 PN6/10/16, ANSI150, JIS10K & BS Flanges
Duty
Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • EPDM Lined
Pressure Rating
PN16
Temperature
-10°C to 120°C
Compliance & Approvals
WRAS (CBF10/J9) • Length to EN558-1 Series 20 • Actuator Functionality Certificate

Electrically ActuatedWRAS Approved Product

Additional information

Variant

DN 25, DN 32, DN 40, DN 50, Other – Please specify in message
