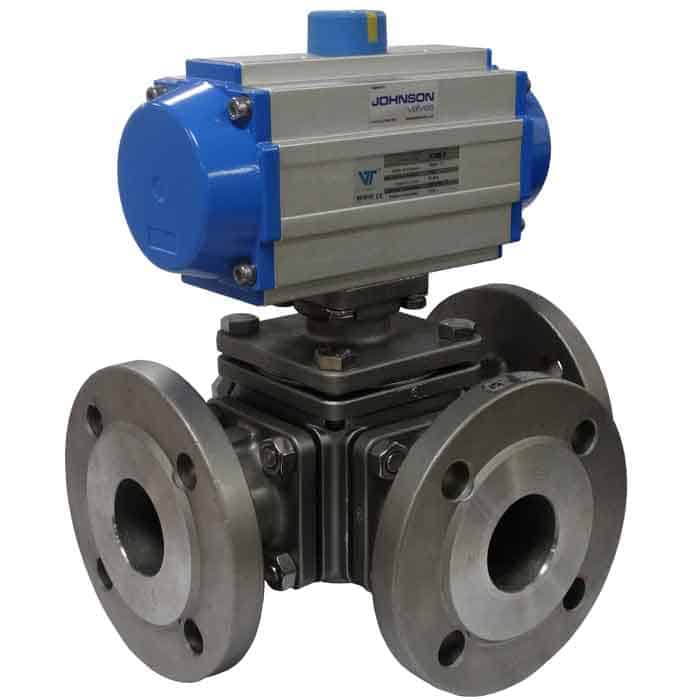

JV240039 – Pneumatically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged ANSI 150

JV240039 – Pneumatically Actuated Three-Way L-Ported Stainless Steel Ball Valve, Flanged ANSI 150

A three-way, L-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied completely assembled with a VT Pneumatic Actuator .

Product Options
Clear
Add to quote
SKU: N/A Categories: , , , ,

Description

Type
Three-Way • L-Ported • Full Bore • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN15 to DN150 • ANSI 150 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
20 Bar
Temperature
-20°C to 200°C (Dependent on pressure)

Additional information

Variant

DN 15, DN 20, DN 25, DN 32, DN 40, DN 50, DN 65, DN 80, DN 100, DN 150, Other – Please specify in message
