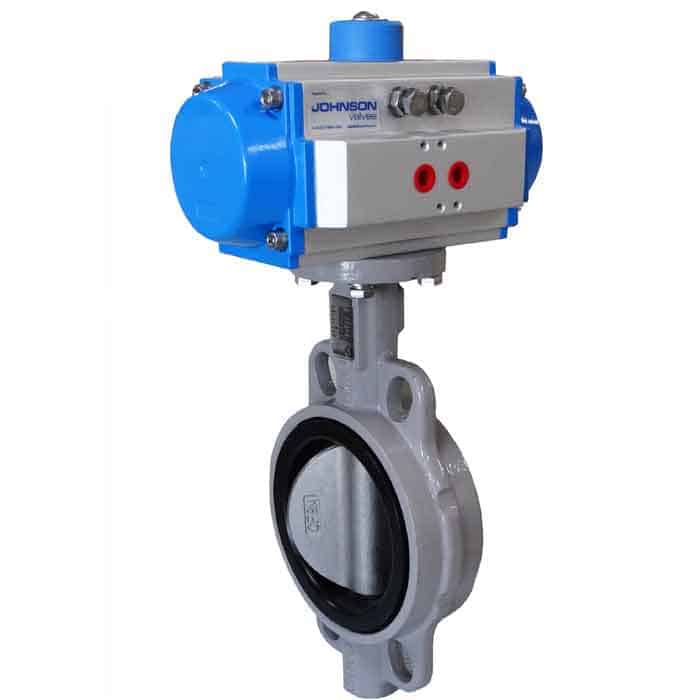

JV240030 – Pneumatically Actuated Wafer Flange Butterfly Valve – NBR Lined

JV240030 – Pneumatically Actuated Wafer Flange Butterfly Valve – NBR Lined

A wafer pattern butterfly valve with a ductile iron body, aluminum bronze disc and an NBR liner suitable for a wide variety of isolation duties. Supplied completely assembled with a VT Pneumatic Actuator .

Product Options
Clear
Add to quote
SKU: N/A Category:

Description

Type
Multi-Flange Wafer • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN40 to DN300 • PN6/10/16, ANSI150 & JIS 5/10/16K Flange
Duty
Air • Inert Gas • Oil • Water
Materials
Ductile Iron Body • Ali-Bronze Disc • NBR Liner
Pressure Rating
PN16
Temperature
-10°C to 80°C
Compliance & Approvals
3.1 Cert (on request) • EN558-1 Series 13 • Actuator Functionality Certificate

Additional information

Variant

DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, Other – Please specify in message
