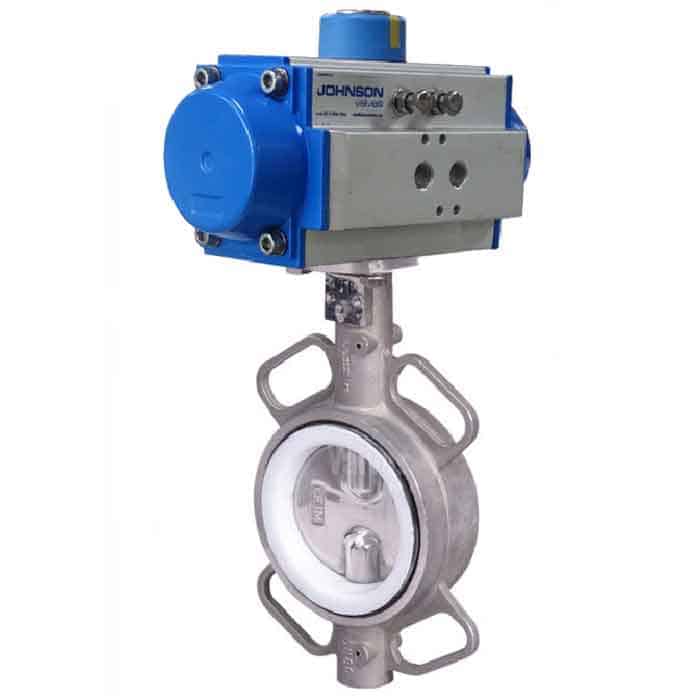

JV240006 – Pneumatically Actuated Stainless Steel Wafer Butterfly Valve, PTFE Lined

JV240006 – Pneumatically Actuated Stainless Steel Wafer Butterfly Valve, PTFE Lined

A butterfly valve with a stainless steel body and disc and PTFE liner makes this valve a cost-effective solution for a wide variety of isolation duties. Supplied completely assembled with a VT Pneumatic Actuator .

Product Options
Clear
Add to quote
SKU: N/A Category:

Description

Type
Multi-Flange Wafer • ISO 5211 Mount • Pneumatically Operated
Size & Connections
DN50 to DN200 • Wafer – Between BS4504 PN6/10/16, ANSI150 & BS Flanges
Duty
Air • Inert Gas • Oil • Water
Materials
Stainless Steel Body & Disc • PTFE Lined (Viton & EPDM options)
Pressure Rating
25-250mm PN16 • 300mm PN10
Temperature
-10°C to 120°C
Compliance & Approvals
Length to EN558-1 Series 20 • Actuator Functionality Certificate

Additional information

Variant

DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, Other – Please specify in message
