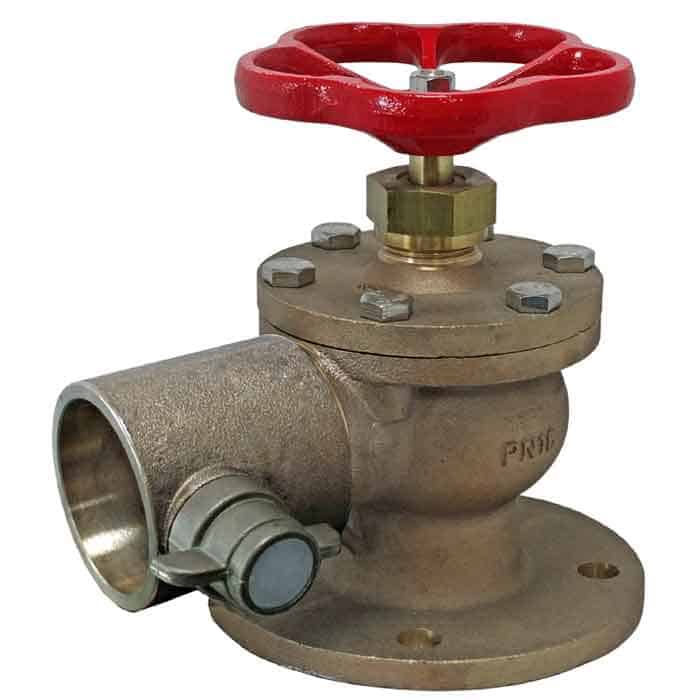

JV120010 – Marine Bronze Angled Fire Hydrant Landing Globe Valve – BS 336 Instantaneous

This angled pattern fire hydrant valve with bolted bonnet is suitable for both offshore and onshore applications. Constructed with a dual seat design, the primary valve seat is hard rubber with an additional secondary metal to metal seat.

Description

Type
Dual Seat Globe • Bolted Bonnet • Angled Pattern
Inlet Size & Connections
DN40 to DN65 • PN16 Flange (others on request)
Outlet Size & Connection
1 1/2″ to 2 1/2″ • BS 336 Insantanteous (others on request)
Materials
Bronze Body • Brass Bonnet, Stem & Secondary Seat • Rubber Primary Seat
Pressure Rating
15 Bar
Temperature
0°C to 80°C
Compliance & Approvals
DIN 86211 • Lloyds (LRS) Approved • 3.1 Material Certs (available on request)
