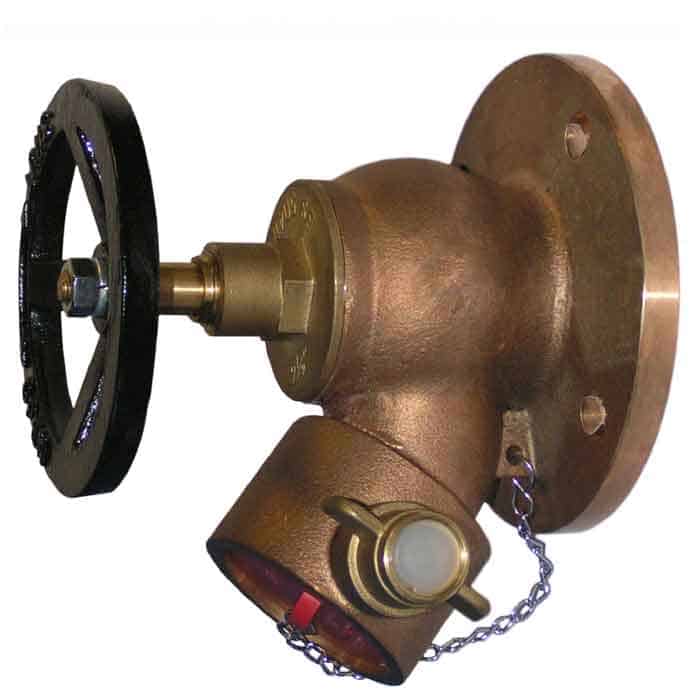

JV120004 – Bronze Oblique Fire Hydrant Landing Globe Valve – BS336 Instantaneous

This oblique pattern fire hydrant valve with screwed bonnet is suitable for both offshore and onshore applications. Constructed with a dual seat design, the primary valve seat is hard rubber with an additional secondary metal to metal seat.

Description

Type
Dual Seat Globe • Screwed Bonnet • Oblique Pattern
Inlet Size & Connections
DN40 to DN80 • PN16 Flange (others on request)
Outlet Size & Connection
DN65 (2 1/2″) BS336 Instantaneous Female (others on request)
Materials
Bronze Body • Brass Bonnet, Stem & Secondary Seat • Rubber Primary Seat
Pressure Rating
15 Bar
Temperature
0°C to 38°C
Compliance & Approvals
BS5041 Part 1
