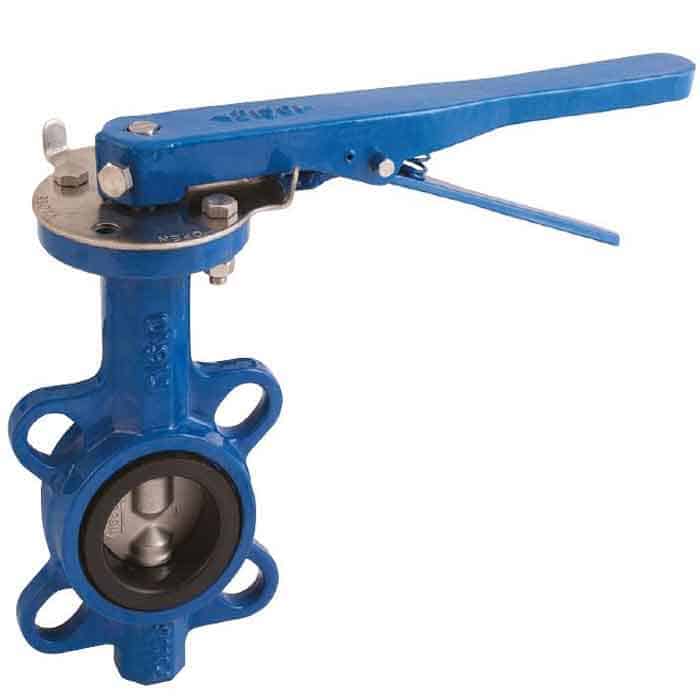

JV101005 – Cast Iron Wafer Butterfly Valve, EPDM Lined

JV101005 – Cast Iron Wafer Butterfly Valve, EPDM Lined

General purpose butterfly valve with a nickel-plated disc and an EPDM liner. Manually operated, supplied with a lockable lever.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , ,

Description

Type
Multi-Flange Wafer
Size & Connections
DN50 to DN250 • Wafer – Between BS4504 PN6/10/16, ANSI150 & BS D/E Flanges
Duty
Water
Materials
Cast Iron Body • Nickel Plated Ductile Iron Disc • EPDM Liner
Pressure Rating
PN16
Temperature
-20°C to 120°C
Compliance & Approvals
Length to EN558-1 Series 20 • ISO 5211 Top Mounting

ISO5211 Pad Mount

Additional information

Variant

DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, Other – Please specify in message
