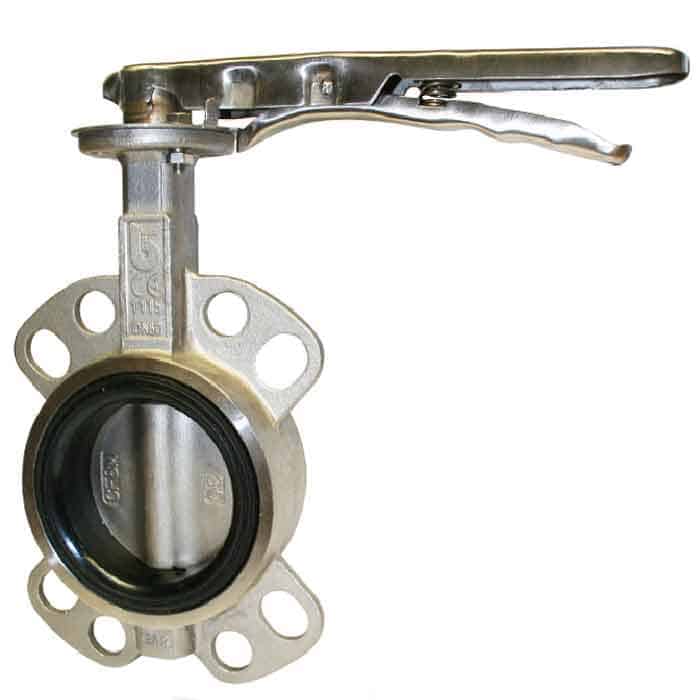

JV100009 – Stainless Steel Wafer Butterfly Valve, Viton Lined

JV100009 – Stainless Steel Wafer Butterfly Valve, Viton Lined

A butterfly valve with a stainless steel body and disc and Viton liner makes this valve a cost-effective solution for a wide variety of isolation applications, particularly higher temperature duties. Manually operated, supplied with a lockable lever or gearbox.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , ,

Description

Type
Multi-Flange Wafer
Size & Connections
DN50 to DN200 • Wafer – Between BS4504 PN6/10/16, ANSI150 & BS D/E Flanges
Duty
Air • Inert Gas • Oil • Water
Materials
Stainless Steel Body • Stainless Steel Disc • Viton Liner
Pressure Rating
PN16
Temperature
-10°C to 150°C
Compliance & Approvals
Length to EN558-1 Series 20 • ISO 5211 Top Mounting

ISO5211 Pad Mount

Additional information

Variant

DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, Other – Please specify in message
