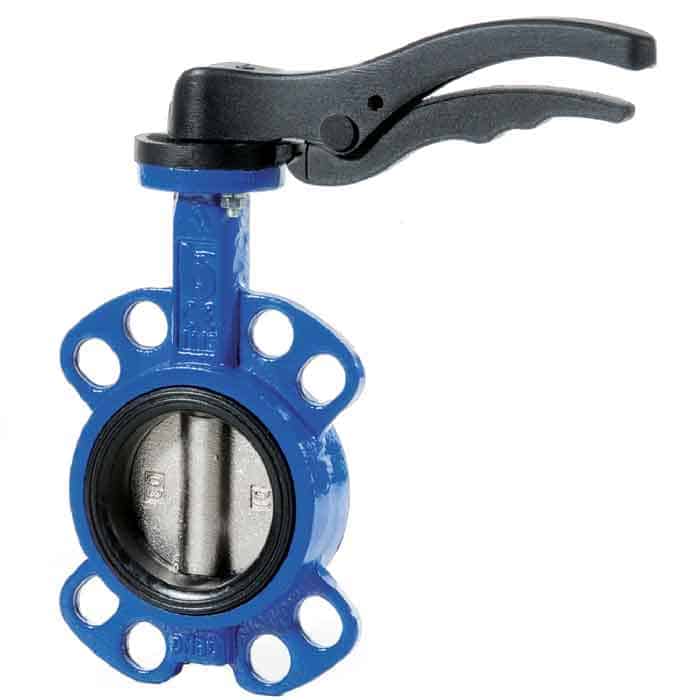

JV100007 – Ductile Iron Wafer Butterfly Valve, EPDM Lined – WRAS Approved

JV100007 – Ductile Iron Wafer Butterfly Valve, EPDM Lined – WRAS Approved

WRAS approved general purpose valve with an EPDM liner, offering a long life with low maintenance. Manually operated, supplied with a lockable lever or gearbox.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , ,

Description

Type
Multi-Flange Wafer
Size & Connections
DN50 to DN600 • Wafer – Between BS4504 PN6/10/16, ANSI150 & BS D/E Flanges
Duty
Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • EPDM Liner
Pressure Rating
PN16
Temperature
-10°C to 120°C
Compliance & Approvals
WRAS (J9 Series) • Length to EN558-1 Series 20 • ISO 5211 Top Mounting
JV100001 – Cast Iron Wafer WRAS Approved Butterfly Valve, EPDM Lined & Stainless Steel Disc - PDF DatasheetWRAS Approved ProductISO5211 Pad Mount

Additional information

Variant

DN 25, DN 32, DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, DN 350, DN 400, DN 450, DN 500, DN 600, Other – Please specify in message
