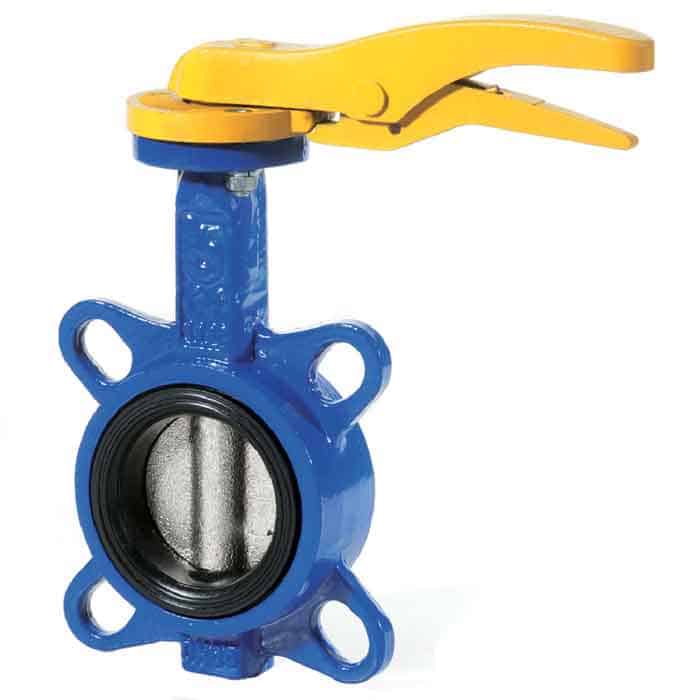

JV100003 – Ductile Iron Wafer Butterfly Valve, NBR Lined

JV100003 – Ductile Iron Wafer Butterfly Valve, NBR Lined

Butterfly valve with an NBR (Buna) liner suitable for a wide range of duties. Manually operated, supplied with a lockable lever or gearbox.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , ,

Description

Type
Multi-Flange Wafer
Size & Connections
DN40 to DN600 • Wafer – Between BS4504 PN6/10/16, ANSI150 & BS D/E Flanges
Duty
Air • Inert Gas • Oil • Water
Materials
Epoxy Coated Ductile Iron Body • Stainless Steel Disc • NBR Liner
Pressure Rating
25-300mm PN16 • 350-600mm PN10
Temperature
-10°C to 80°C
Compliance & Approvals
Length to EN558-1 Series 20 • ISO 5211 Top Mounting

ISO5211 Pad Mount

Additional information

Variant

DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, DN 350, DN 400, DN 450, DN 500, DN 600, Other – Please specify in message
