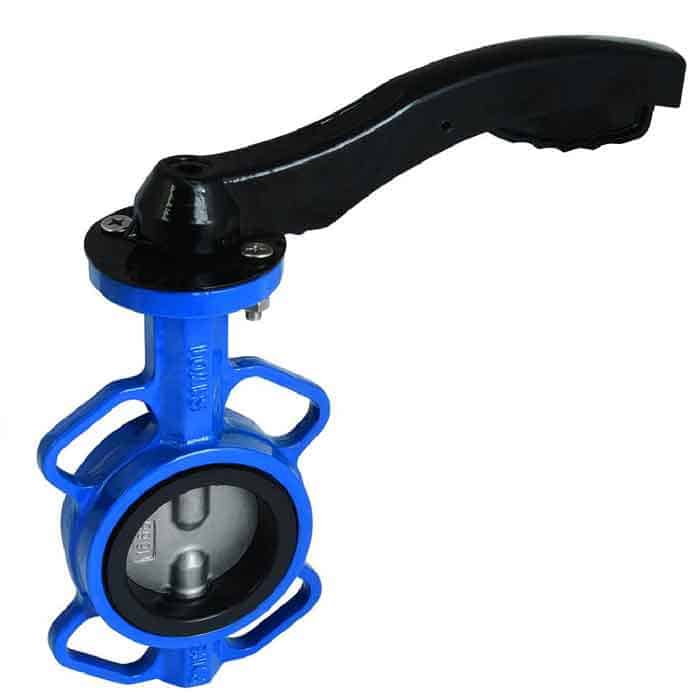

JV100001 – Cast Iron Wafer Butterfly Valve, EPDM Lined – WRAS Approved

JV100001 – Cast Iron Wafer Butterfly Valve, EPDM Lined – WRAS Approved

WRAS approved general purpose valve with an EPDM liner, offering a long life with low maintenance. Manually operated, supplied with a lockable lever.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , ,

Description

Type
Multi-Flange Wafer
Size & Connections
DN50 to DN300 • Wafer – Between BS4504 PN6/10/16, ANSI150, JIS10K & BS Flanges
Duty
Water
Materials
Epoxy Coated Cast Iron Body • Stainless Steel Disc • EPDM Liner
Pressure Rating
PN16
Temperature
-20°C to 120°C
Compliance & Approvals
WRAS (CBF10-TA03) • Length to EN558-1 Series 20 • ISO 5211 Top Mounting
JV100001 – Cast Iron Wafer WRAS Approved Butterfly Valve, EPDM Lined & Stainless Steel Disc - PDF DatasheetWRAS Approved ProductISO5211 Pad Mount

Additional information

Variant

DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, Other – Please specify in message
