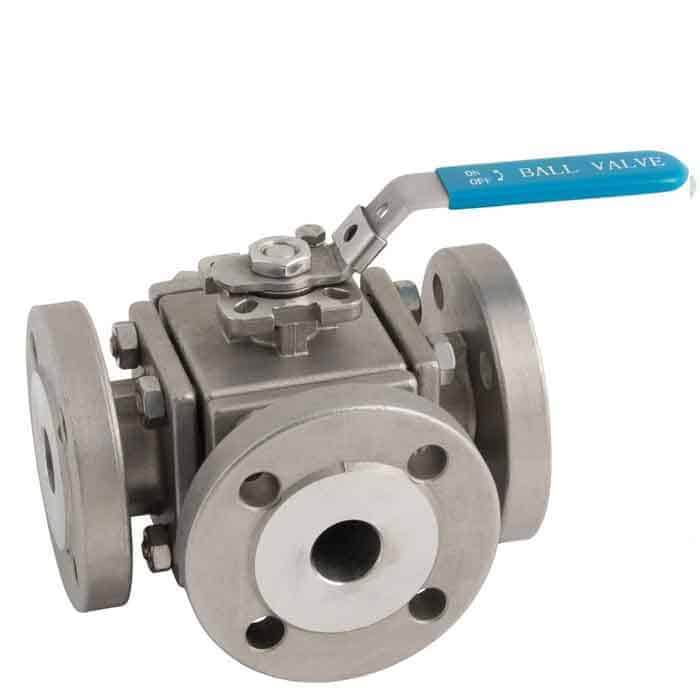

JV090021 – Three-Way T-Ported Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged PN16

JV090021 – Three-Way T-Ported Stainless Steel Ball Valve, ISO 5211 Direct Mount, Flanged PN16

A three-way, T-Ported stainless steel ball valve making it suitable for many applications where fluid diversion is required. Supplied with a manual lever, can be supplied complete with an electric or pneumatic actuator.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , ,

Description

Type
Three-Way • T-Ported • Full Bore • ISO 5211 Mount
Size & Connections
DN15 to DN150 • PN16 Flange
Duty
Air • Gas • Oil • Steam • Water
Materials
Stainless Steel Body & Ball • PTFE Seat
Pressure Rating
PN16
Temperature
-20°C to 200°C (Dependent on pressure)

ISO5211 Pad Mount

Additional information

Variant

DN15, DN 20, DN 25, DN 32, DN 40, DN 50, DN 65, DN 80, DN 100, DN 150, Other – Please specify in message
