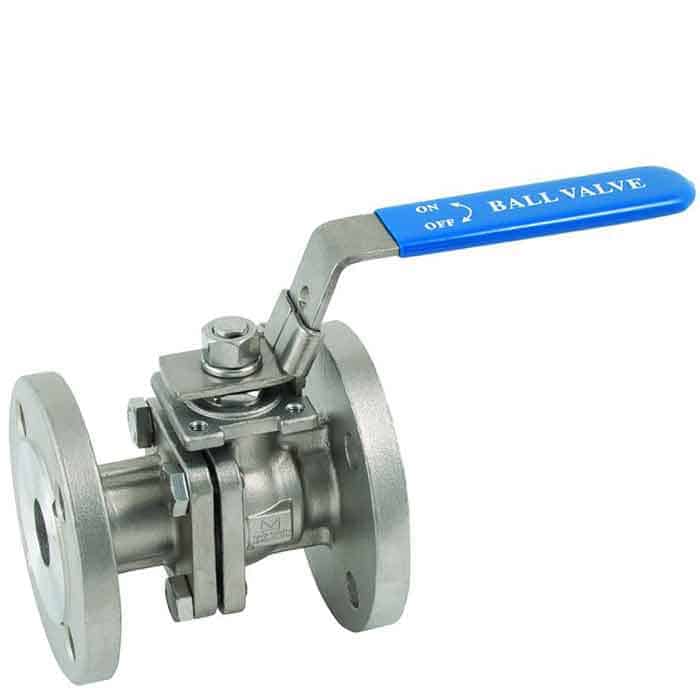

JV090009 – Stainless Steel Ball Valve, Flanged ANSI 150

JV090009 – Stainless Steel Ball Valve, Flanged ANSI 150

A full-bore, two-piece general purpose stainless steel ball valve with ANSI 150 flanges. The valve is lockable in the open and closed position. Manually operated, supplied with a lever.

Product Options
Clear
Add to quote
SKU: N/A Category:

Description

Type
Two Piece • Full Bore • Blow-out Proof Stem
Size & Connections
DN15 to DN250 • ANSI 150 Flange
Duty
Air • Inert Gas • Oil • Steam • Water
Materials
Stainless Steel Body, Ball & Stem • PTFE Seat
Pressure Rating
20 Bar (12 Bar for steam)
Temperature
-20 to 200°C (dependent on pressure)
Compliance & Approvals
ASME B16.10

Additional information

Variant

DN 15, DN 20, DN 25, DN 32, DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, Other – Please specify in message
