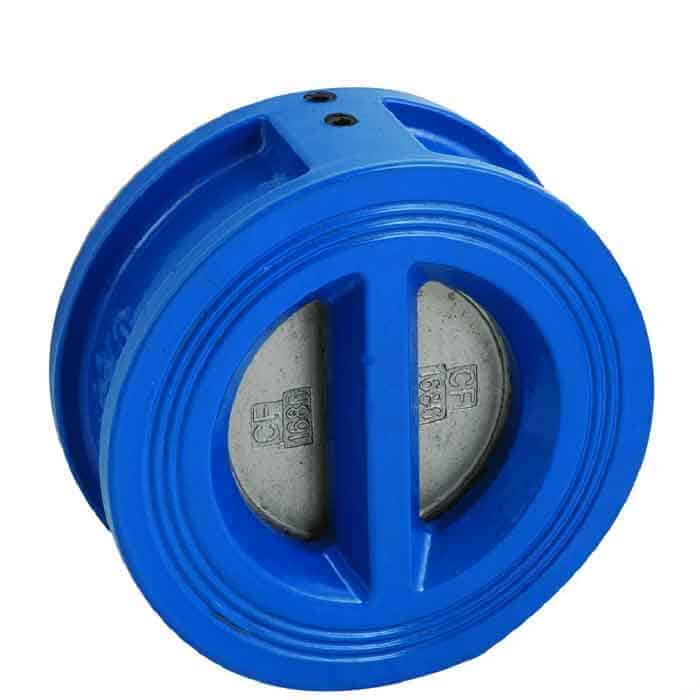

JV081016 – Cast Iron Wafer Spring Assisted Dual Plate Check Valve – Short Length

JV081016 – Cast Iron Wafer Spring Assisted Dual Plate Check Valve – Short Length

A WRAS approved epoxy coated cast iron, spring-loaded dual plate check valve with stainless steel flaps and EPDM seats suitable for water applications.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , , , , ,

Description

Type
Dual Plate • Spring Assisted
Size & Connections
DN50 to DN300 • Wafer – Between BS4504 PN10/16 & ANSI 150 Flanges
Duty
Water
Materials
Cast Iron Body • Stainless Steel Plates & Spring • EPDM Seat
Pressure Rating
PN16
Temperature
-10°C to 110°C
Compliance & Approvals
WRAS
Compliance & Approvals
WRAS

WRAS Approved Product

Additional information

Variant

DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, Other – Please specify in message
