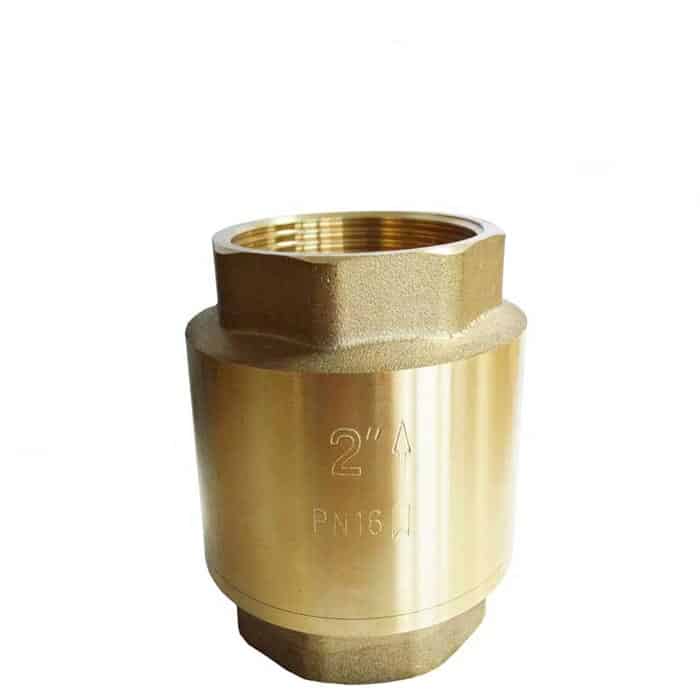

JV080049 – Brass Spring-Loaded Check (Non-Return) Valve – Viton Seals

JV080049 – Brass Spring-Loaded Check (Non-Return) Valve – Viton Seals

An economical spring-loaded non-return valve with a brass body and Viton seals.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , ,

Description

Type
Spring Loaded (In-Line)
Size & Connections
6mm (1/4″) to 100mm (4″) BSPP Female
Duty
Air • Inert Gas • Oil • Water
Materials
Brass Body • Brass Disc • Viton Seals
Pressure Rating
6-25mm PN35 • 32-50mm PN25 • 65-100mm PN12
Temperature
-10°C to 110°C

Additional information

Variant

¼", ⅜", ½", ¾", 1", 1¼", 1½", 2", 2½", 3", 4", Other – Please specify in message
