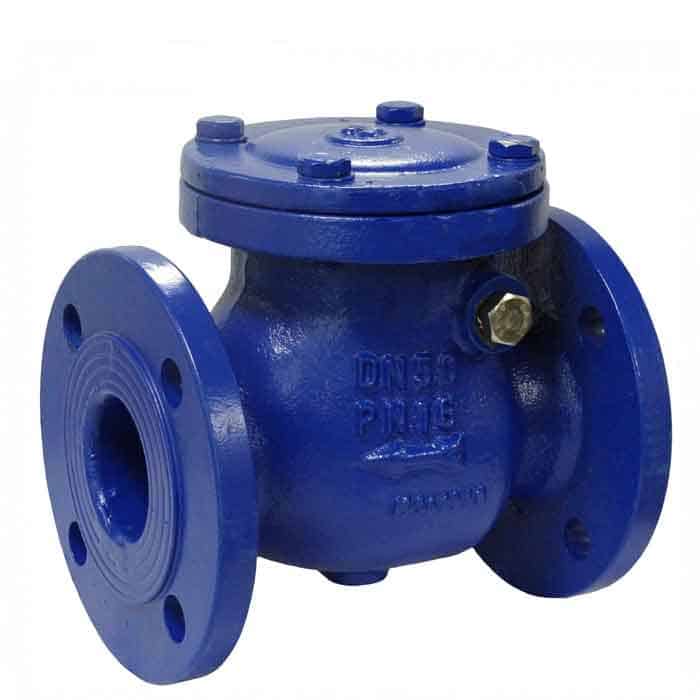

JV080045 – Ductile Iron Swing Check Valve (Non-Return) Valve – NBR Seals

JV080045 – Ductile Iron Swing Check Valve (Non-Return) Valve – NBR Seals

General purpose swing check (non-return) valve used to prevent reverse flow.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , , ,

Description

Type
Swing (Flap)
Size & Connections
DN40 to DN450 • PN10/16 Flange
Duty
Air • Inert Gas • Oil • Seawater • Water
Materials
Ductile Iron Body • Brass Seat • NBR Seals
Pressure Rating
40-200mm PN16 • 250-300mm PN10 • 300-450mm PN6
Temperature
0°C to 80°C
Compliance & Approvals
DIN 3202 F6 • 3.1 Material Certification (available on request)
Compliance & Approvals
DIN 3202 F6 • 3.1 Material Certification (available on request)

Additional information

Variant

DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200 PN10, DN 200 PN16, DN 250 PN10, DN 250 PN16, DN 300 PN10, DN 300 PN16, DN 350 PN10, DN 350 PN16, DN 400 PN10, DN 400 PN16, DN 450 PN10, DN 450 PN16, Other – Please specify in message
