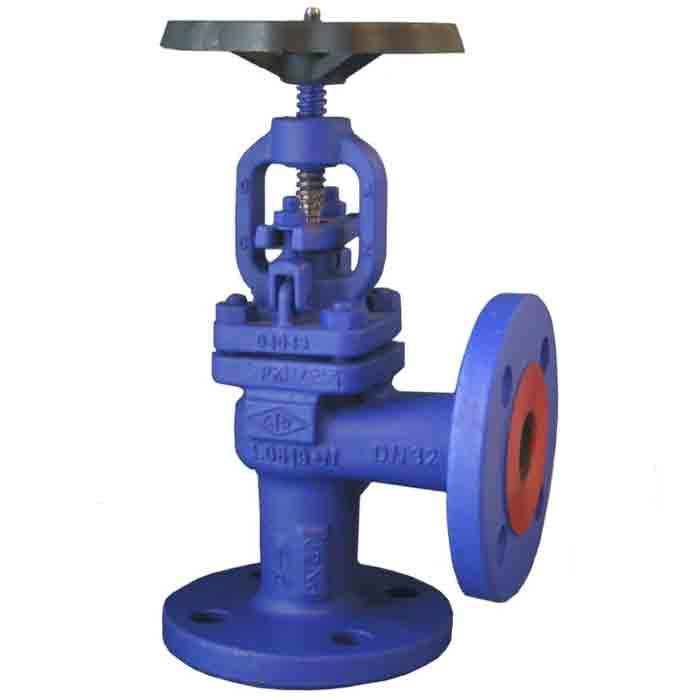

JV070062 – Cast Steel SDNR Angle Globe Valve with Stainless Steel Disc

JV070062 – Cast Steel SDNR Angle Globe Valve with Stainless Steel Disc

Cast steel globe valve with a stainless steel disc suitable for a range of applications including shipside and boiler duties. Manufactured with a non-return design, preventing reverse flow when in the open position, also suitable for isolation duty. Class society inspection and 3.1 material certification can be arranged on request.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , , , ,

Description

Type
Screw Down Non-Return (SDNR) • Bolted Bonnet • Rising Stem • Angle
Size & Connections
DN15 to DN500 • PN40 Flange (others on request)
Duty
Air • Inert Gas • Oil • Seawater • Steam • Water
Materials
Cast Steel Body & Bonnet • Stainless Steel Stem • Stainless Steel Disc
Pressure Rating
PN40
Temperature
-10°C to 300°C
Compliance & Approvals
DIN EN5581 • DIN 3202-1 Series F32 • 3.1 & 3.2 Material Certs (available on request)

3.1 & 3.1 Material Certification (on request)

Additional information

Variant

DN 15, DN 20, DN 25, DN 32, DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 175, DN 200, DN 250, DN 300, DN 350, DN 400, DN 450, DN 500, DN 600, Other – Please specify in message
