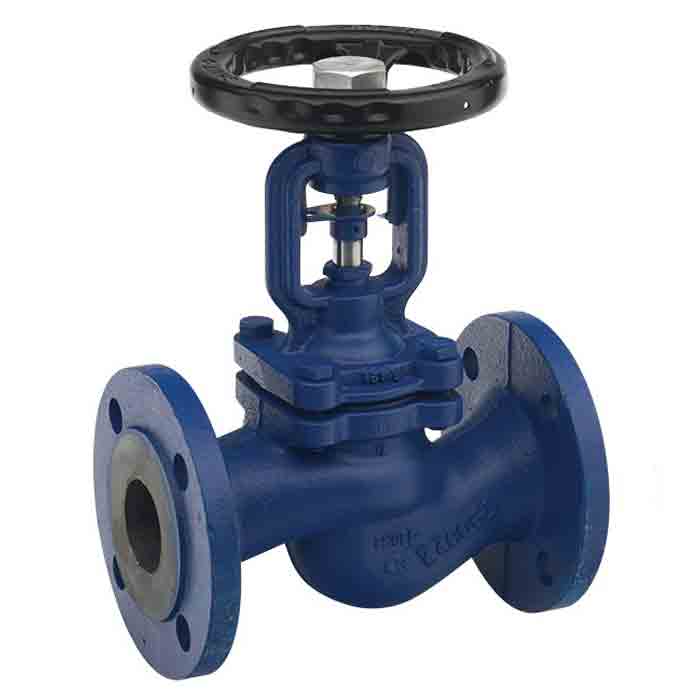

JV070020 – Cast Iron Bellow Seal Globe Valve with Stainless Steel Disc

JV070020 – Cast Iron Bellow Seal Globe Valve with Stainless Steel Disc

Cast iron globe valve with a stainless steel disc, manufactured with a bellow seal that helps to prevent the media from coming in contact with the stem.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , , ,

Description

Type
Bellow Seal • Screw Lift • Bolted Bonnet • Rising Stem
Size & Connections
DN15 to DN300 • PN16 Flange (others on request)
Duty
Air • Inert Gas •: Oil • Steam • Water
Materials
Cast Iron Body & Bonnet • Stainless Steel Stem & Bellow • Stainless Steel Disc
Pressure Rating
PN16
Temperature
120°C @ 16 Bar• 300°C @ 9.6 Bar
Compliance & Approvals
DIN EN5581 • DIN 3202-1 Series F1

Additional information

Variant

DN 15, DN 20, DN 25, DN 32, DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, Other – Please specify in message
