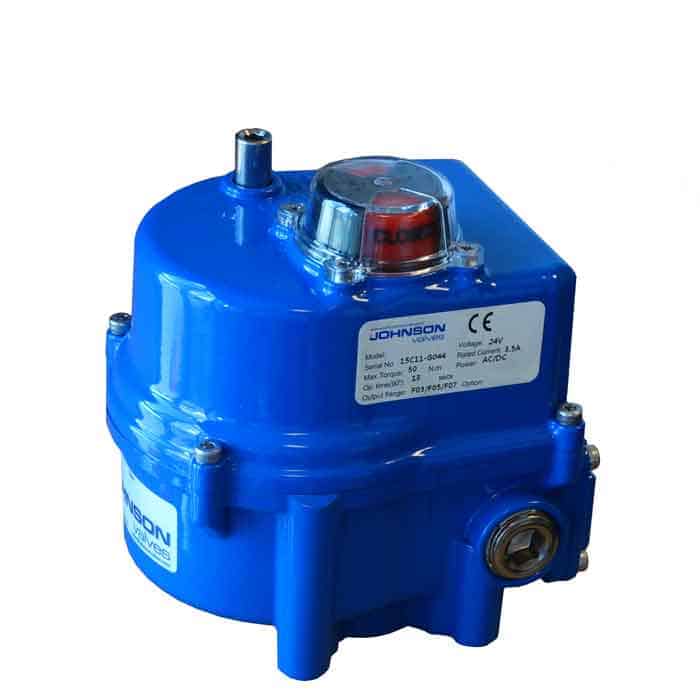

JV-E – Johnson Valves Electric Actuator

JV-E – Johnson Valves Electric Actuator

The JV-E electric actuator is designed for quarter turn applications on ball and butterfly valves with bases to ISO 5211 DIN 3337 standard. Small, lightweight and compact in design but still offering high output torques.

Product Options
Clear
Add to quote
SKU: N/A Category:

Description

Type
Electric • 1/4 Turn • Scotch-Yoke (Except for JV-E05 – Spur Gear Type)
ISO 5211 Mountings
F03 • F05 • F07 • F10 • F12 • F14
Power Supply
24VDC • 110/220VAC 50/60Hz (1-phase) • 380/440VAC 50/60Hz (1-phase)
Torque Range
20Nm to 1200Nm
Enclosure
IP68 Watertight
Casing Material
Aluminium Alloy

Additional information

Variant

JV-E02, JV-E04, JV-E05, JV-E10, JV-E16, JV-E28, JV-E40, JV-E50, JV-E80, JV-E120, Other – Please specify in message
