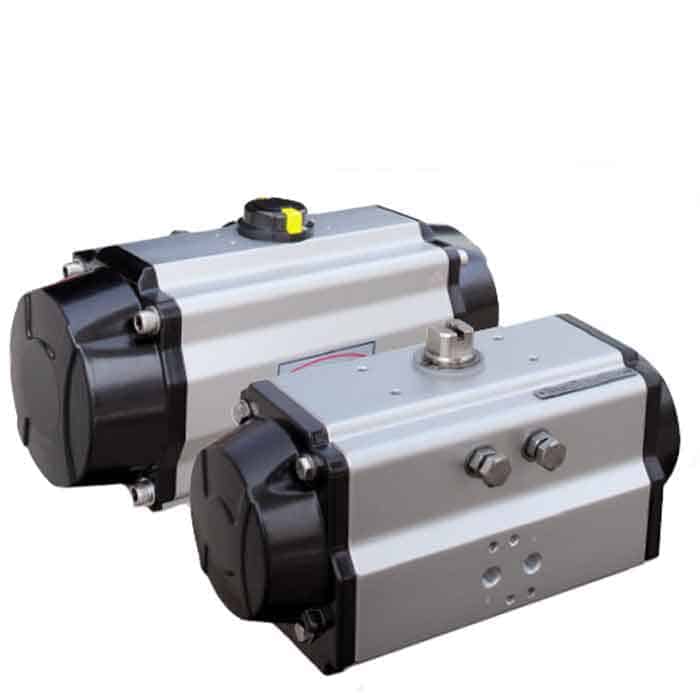

HP – Pneumatic Actuator

HP – Pneumatic Actuator

The HP rack and pinion pneumatic actuators are designed for quarter turn applications on ball, butterfly and plug valves.

Product Options
Clear
Add to quote
SKU: N/A Category:

Description

Type
Pneumatic • 1/4 Turn • Single Acting (Spring Return) • Double Acting
ISO 5211 Mountings
F03 • F05 • F07 • F10 • F12 • F14
Air Supply Pressure Range
2.5 to 8 Bar
Torque Range
Single Acting (Spring Return) 1.5Nm – 1878Nm • Double Acting 3.8Nm – 1525Nm
Rating
ATEX • SIL2
Casing Material
Aluminium Alloy

Additional information

Variant

HP-50, HP-63, HP-66, HP-75, HP-88, HP-100, HP-115, HP-125, HP-145, HP-160, HP-180, HP-200, HP-210, Other – Please specify in message
