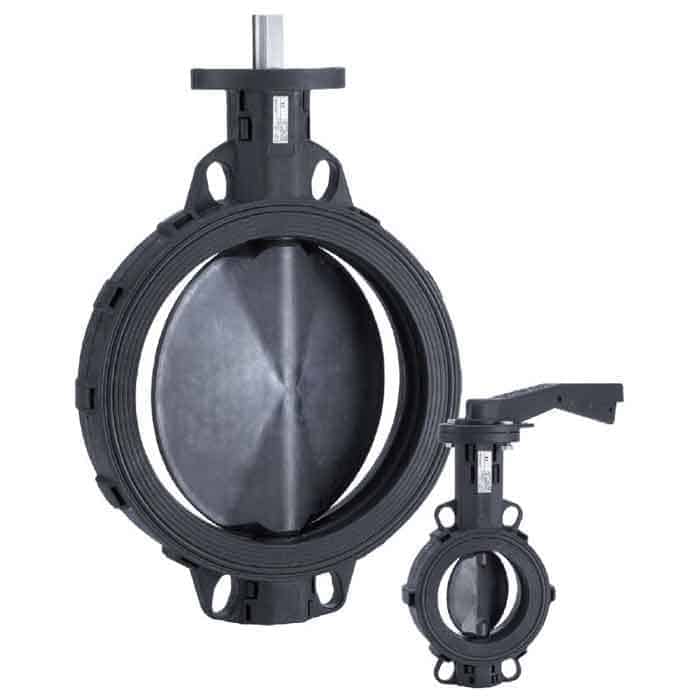

CompoSeal – Marine Composite Plastic Wafer Butterfly Valve

CompoSeal – Marine Composite Plastic Wafer Butterfly Valve

Marine quality butterfly valve with a composite plastic body and an option NBR, EPDM or FKM liner suitable for many duties.  Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Product Options
Clear
Add to quote
SKU: N/A Categories: , , , , , , ,

Description

Type
Multi-Flange Wafer
Size & Connections
DN40 to DN300 • Wafer – Between BS4504 PN6/10/16, ANSI150 & JIS 10K Flanges*
Duty
Air • Inert Gas • Oil • Seawater • Water (dependent on materials)
Materials
Compostie Body & Disc • Stainless Steel Shaft • NBR, EPDM or Viton Liner
Pressure Rating
PN16 (dependent on temperature)
Temperature
0°C to 150°C (dependent on pressure)
Compliance & Approvals
DNV Type Approval • WRAS (EPDM only) • EN558-1 Series 20
* Specify when enquiring

ISO5211 Pad Mount

Additional information

Variant

DN 40, DN 50, DN 65, DN 80, DN 100, DN 125, DN 150, DN 200, DN 250, DN 300, Other – Please specify in message
