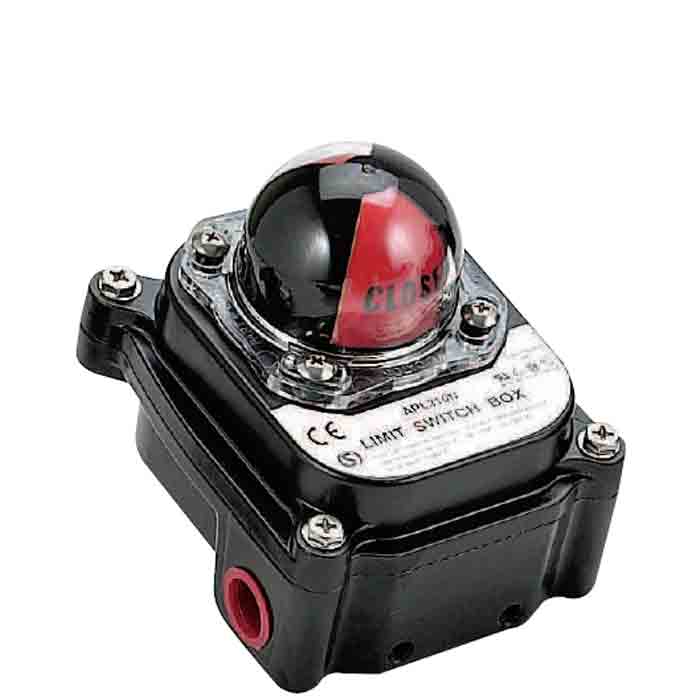

APL 310 – Limit Switch Box Position Monitoring for Pneumatic Actuator

APL 310 – Limit Switch Box Position Monitoring for Pneumatic Actuator

The APL 310 switch box gives a clear visual indication of the valve position as well as electrical feedback with the option of adding additional switches and sensors.

Add to quote
Categories: ,

Description

Type
2 x SPDT Switches* • 2 x Proximity Sensors* • Visual Position Indicator
Mountings
NAMUR Interface Bracket
Power Ratings
16A – 125/250VAC • 10A – 30VDC • 0.6A – 125VDC • 0.3A – 250VDC
Waterproofing
IP67
Body Material
Aluminium Alloy
* Option of additional switches and sensors
